When your application demands superior corrosion resistance, high strength, and exceptional fatigue life, Elgiloy springs offer a trusted solution. Elgiloy is a cobalt-chromium-nickel-based alloy known for its outstanding mechanical properties in harsh environments. Springs made from Elgiloy are used in some of the world’s most demanding industries, including aerospace, oil and gas, medical, and chemical processing.
At Wermke Spring, we manufacture custom Elgiloy springs designed to perform under extreme conditions, whether you’re operating in corrosive environments, high temperatures, or under continuous cyclic stress. With decades of experience and a reputation for precision manufacturing, we are your trusted source for Elgiloy spring solutions. To learn more or request a quote for spring manufacturing to meet your precise specifications, contact us today.

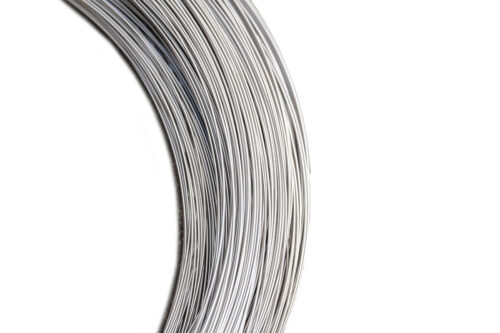

What Are Elgiloy Springs?
Elgiloy is a registered trademark for a high-performance alloy composed primarily of cobalt (40%), chromium (20%), nickel (15%), iron, molybdenum, and other trace elements. This non-magnetic, corrosion-resistant alloy offers exceptional mechanical strength, making it ideal for critical spring applications.
Elgiloy is classified as a superalloy due to its ability to maintain strength, formability, and fatigue resistance in both high and low temperature environments, while withstanding exposure to acids, chlorides, and oxidizing agents.
Key Advantages of Elgiloy Springs
1. Excellent Corrosion Resistance
Elgiloy resists attack from a wide range of corrosive substances including:
- Hydrochloric acid
- Sulfuric acid
- Nitric acid
- Chloride-rich environments (saltwater)
This makes Elgiloy ideal for marine, chemical, and medical environments.
2. High Tensile and Yield Strength
Elgiloy’s tensile strength can reach up to 320 KSI, depending on heat treatment. This allows it to perform well under high mechanical loads with minimal deformation.
3. Superior Fatigue Life
The alloy’s unique microstructure offers exceptional resistance to cyclic loading, making it perfect for springs used in repeated motion applications or high-cycle environments.
4. Non-Magnetic Properties
Elgiloy is essentially non-magnetic, making it suitable for sensitive electronic, medical, and aerospace systems where magnetic interference must be avoided.
5. Biocompatibility
Elgiloy is biocompatible and commonly used in medical implants, surgical instruments, and diagnostic equipment.
6. Wide Temperature Range
Elgiloy retains its mechanical properties in extreme environments, from cryogenic temperatures up to approximately 850°F (450°C).
Limitations of Elgiloy Springs
Despite its many benefits, Elgiloy has some trade-offs to consider:
1. Cost
As a specialty alloy, Elgiloy is significantly more expensive than common spring materials like music wire or stainless steel . It is best reserved for high-performance or mission-critical applications.
2. Machinability and Forming
Due to its strength and hardness, Elgiloy requires specialized tooling and processing for spring manufacturing. Tight control of heat treatment and stress relieving is also essential.
3. Limited Availability
While increasingly available, Elgiloy wire may have longer lead times or limited stock in certain diameters or conditions compared to more common alloys.
Common Applications for Elgiloy Springs
Elgiloy’s properties make it ideal for springs used in extreme environments or high-precision systems. Common applications include:
Aerospace
- Jet engine components
- Aircraft actuators and controls
- Vibration-isolation systems
Oil and Gas
- Downhole tools
- Valve seals
- Subsea equipment
Medical Devices
- Stents and implants
- Surgical instruments
- MRI-compatible springs
Chemical Processing
- Pumps and valves
- Metering equipment
- Exposure to acidic and oxidizing agents
Defense and Electronics
- Non-magnetic actuators
- Mission-critical devices
- Space-rated mechanical systems
Types of Elgiloy Springs We Manufacture
We manufacture precision Elgiloy springs for a wide variety of applications:
- Compression Springs – Absorb loads or control pressure in confined spaces
- Extension Springs – Provide pulling force with consistent recovery
- Torsion Springs – Deliver torque in rotary applications
- Wire Forms – Custom geometries for electrical contacts or structural use
Every spring is made to your specifications using advanced forming equipment and tight-tolerance processes.
Frequently Asked Questions About Elgiloy Springs
What makes Elgiloy different from stainless steel?
Elgiloy offers greater corrosion resistance, higher strength, and superior fatigue performance than standard stainless steel grades like 302 or 316. It also performs better in extreme temperature ranges and is non-magnetic.
Can Elgiloy springs be used in marine environments?
Yes. Elgiloy’s excellent resistance to chloride-induced corrosion makes it well-suited for saltwater and offshore applications.
Is Elgiloy safe for medical applications?
Yes. Elgiloy is biocompatible and widely used in implantable medical devices and instruments.
What’s the typical temperature range for Elgiloy springs?
Elgiloy can operate reliably from cryogenic temperatures up to around 850°F (450°C).
Can Wermke Spring help with Elgiloy spring engineering?
Absolutely. We work with you to evaluate load, deflection, fatigue life, and environmental exposure to manufacture custom Elgiloy springs that meet your performance requirements.
Engineering Considerations
Engineering Elgiloy springs requires attention to:
- Stress limits – Avoid overstraining the alloy
- Forming radius – Due to its hardness, sharp bends should be avoided
- Heat treatment – Required to achieve optimal mechanical properties
- Cost-benefit – Reserve Elgiloy for conditions where its advantages justify the cost
Our team uses advanced spring engineering tools and metallurgical expertise to ensure optimal material usage and spring reliability.
Trust Wermke Spring for Elgiloy Spring Manufacturing
Wermke Spring combines material knowledge, precision manufacturing, and decades of experience to deliver Elgiloy springs that perform in the most challenging environments. From aerospace and oilfield tools to medical devices and high-tech assemblies, we build springs you can depend on.
Our capabilities include:
- Custom engineering support
- Tight-tolerance manufacturing
- Material certifications and traceability
- Low to high-volume production
Contact Us Today
Need high-performance Elgiloy springs built to your exact specifications? Call Wermke Spring at (636) 677-5500 or reach out online to request a quote or discuss your spring engineering needs. We’re here to provide expert guidance and premium spring solutions for even the harshest operating conditions.
