For spring applications that demand a unique combination of corrosion resistance, electrical conductivity, and mechanical durability, phosphor bronze springs are a proven solution. As a copper-based alloy known for its toughness and resistance to wear, phosphor bronze is widely used in electronics, marine hardware, and industrial instrumentation where reliability and non-magnetic properties are essential.
Wermke Spring manufactures custom phosphor bronze springs to meet the specific performance and dimensional needs of your application. With over 70 years of spring engineering experience, we deliver quality solutions that combine functionality, material expertise, and long-term durability. To learn more or request a spring manufacturing quote, contact us today.
What Is Phosphor Bronze?
Phosphor bronze is a copper alloy containing approximately 0.5–11% tin and a small amount (0.01–0.35%) of phosphorus. The addition of tin provides strength and corrosion resistance, while phosphorus improves stiffness and wear resistance.
The most common spring-grade material is Phosphor Bronze C510 (Grade A), which offers a good balance of electrical conductivity and spring performance. Other variants like C521 and C544 provide enhanced machinability or stiffness for specific use cases.
Advantages of Phosphor Bronze Springs
1. Corrosion Resistance
Phosphor bronze offers excellent resistance to atmospheric corrosion, water, and some mild chemicals. It’s ideal for springs used in marine environments, humid conditions, and outdoor installations.
2. Good Electrical Conductivity
While not as conductive as pure copper, phosphor bronze maintains sufficient conductivity for use in switches, connectors, and EMI-sensitive components.
3. Non-Magnetic Properties
Phosphor bronze is non-magnetic, making it well suited for sensitive instrumentation and electronic assemblies where magnetic interference is a concern.
4. High Fatigue Resistance
With excellent elasticity and fatigue resistance, phosphor bronze springs perform well in applications with cyclic loading or mechanical vibration.
5. Superior Wear and Galling Resistance
The material naturally resists galling and maintains surface integrity even under mechanical stress, extending service life.
Limitations of Phosphor Bronze Springs
While phosphor bronze offers many advantages, it’s important to consider its limitations:
1. Lower Strength than Spring Steel
Phosphor bronze does not match the tensile strength of high-carbon steel or Inconel alloy springs, which limits its use in high-stress applications.
2. Limited Temperature Range
Typical service temperatures for phosphor bronze springs range from -65°F to 350°F (177°C). Beyond this, performance may degrade.
3. Cost
Although not as expensive as exotic alloys, phosphor bronze is more costly than basic materials like music wire or oil-tempered steel springs.

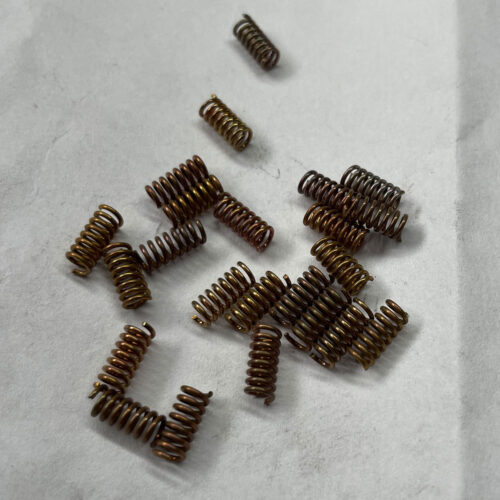

Common Applications for Phosphor Bronze Springs
Thanks to its corrosion resistance, conductivity, and non-magnetic nature, phosphor bronze is ideal for a range of industries:
Electronics and Electrical Systems
- Contact springs
- Relay and switch terminals
- EMI shielding elements
Marine and Outdoor Equipment
- Saltwater-exposed actuators
- Battery terminals in wet environments
- Corrosion-resistant closures
Precision Instruments
- Clocks and measuring devices
- Mechanical gauges and dials
Industrial and Commercial Hardware
- Snap-action mechanisms
- Non-sparking tools
- Latching assemblies
Types of Phosphor Bronze Springs We Manufacture
Wermke Spring custom manufactures phosphor bronze springs in a variety of configurations:
- Compression Springs – Designed for shock absorption and force resistance in compact spaces
- Extension Springs – Used in tension-loading mechanisms requiring corrosion resistance
- Torsion Springs – Provide angular force in rotary actuators and return systems
- Wire Forms – Custom geometries for contact springs, brackets, and flex connectors
All springs are built to your precise dimensional, force, and environmental specifications.
Frequently Asked Questions
Is phosphor bronze stronger than brass?
Yes. Phosphor bronze generally offers greater strength, stiffness, and wear resistance than brass, making it a better choice for spring applications.
Is phosphor bronze corrosion resistant?
Absolutely. It performs well in marine, outdoor, and humid environments, although it may require surface treatment or plating for extreme chemical exposure.
Can phosphor bronze springs be used in electrical applications?
Yes. Phosphor bronze is conductive and is widely used in switches, contacts, and terminals where mechanical deflection and conductivity are required.
Is phosphor bronze magnetic?
No. Phosphor bronze is non-magnetic and safe for applications that require minimal electromagnetic interference.
What is the lifespan of a phosphor bronze spring?
When properly engineered and used within its stress and environmental limits, phosphor bronze springs can perform for thousands to millions of cycles depending on the application.
Engineering Considerations
When engineering springs with phosphor bronze, consider the following:
- Stress Limits – Stay within material yield strength to ensure long fatigue life
- Deflection Range – Moderate elasticity makes it suitable for controlled movement
- Contact Resistance – Consider contact pressure and conductivity in electrical applications
- Coatings – Options like tin plating may enhance conductivity and corrosion resistance
Our engineering team assists in selecting the right alloy and optimizing spring geometry to meet your performance goals.
Why Choose Wermke Spring for Phosphor Bronze Springs?
Wermke Spring is a trusted leader in custom spring manufacturing with a reputation for precision, consistency, and reliability. Our phosphor bronze spring solutions are used in high-value applications where performance and corrosion resistance are key.
We provide:
- Custom spring engineering and prototyping
- Tight-tolerance production and quality control
- Full material certification and traceability
- Fast turnaround and responsive support
Whether you need one spring or one million, we manufacture to your standards and schedule.
Contact Us to Get Started
Looking for custom phosphor bronze springs built for performance and durability? Call Wermke Spring today at (636) 677-5500 or reach out online to discuss your project, request a quote, or get expert help with your spring manufacturing project. We’re ready to support your success with precision-crafted spring solutions.
