Proper spring tolerance analysis is a critical part of designing reliable springs for mechanical systems. Tolerances define the acceptable variation in a spring’s dimensions and performance characteristics during manufacturing. Because springs are formed through coiling, heat treatment, and finishing processes, some variation is unavoidable.
Understanding how tolerances influence spring performance helps engineers design components that function reliably in real-world assemblies while remaining manufacturable and cost effective.
When tolerances are carefully evaluated during the design phase, engineers can prevent assembly problems, inconsistent performance, and premature spring failure. Effective tolerance analysis ensures the spring performs consistently across production batches while still meeting the mechanical requirements of the application.
To learn more about spring design and how we can help, contact our team today.
What Is Spring Tolerance?
A spring tolerance specifies the allowable variation in a spring’s dimensions, geometry, and mechanical performance. These limits account for normal variations in material properties, wire diameter, manufacturing processes, and heat treatment.
Spring tolerances commonly apply to the following characteristics:
- Wire diameter
- Outside or inside diameter
- Free length
- Spring rate
- Load at specified deflection
- Number of active coils
- Solid height
Because spring load and torque values are strongly influenced by wire diameter and geometry, even small dimensional variations can significantly affect performance.
Industry standards such as those from the Spring Manufacturers Institute (SMI) help guide manufacturers in defining realistic tolerances for common spring types.

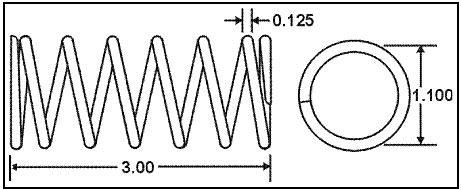

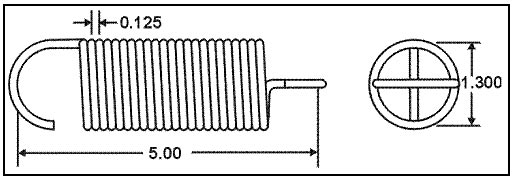

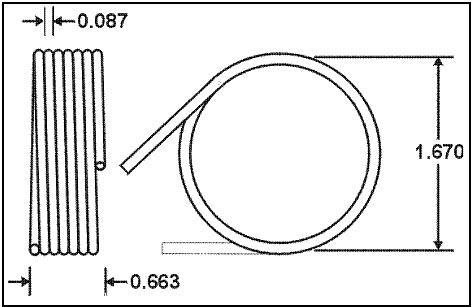

Typical Manufacturing Tolerances for Springs
While specific tolerances vary depending on the design, size, and material, the spring manufacturing industry follows general guidelines for dimensional and performance variation.
Typical tolerance ranges include:
Wire Diameter
Wire manufacturers maintain tight tolerances because spring performance is highly sensitive to wire size. Even small variations can significantly change spring stiffness and load capacity.
Outside Diameter
Outside diameter tolerances commonly range from approximately ±0.002 inches for small springs to ±0.015 inches or more for larger springs.

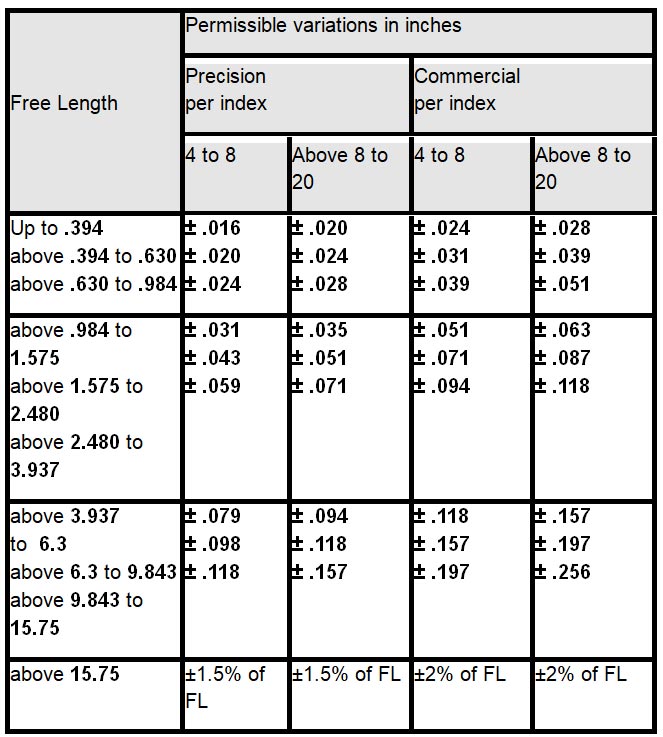

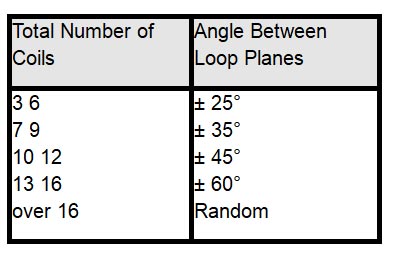

Free Length
Free length tolerances vary based on spring size but may range from approximately ±0.03 inches for smaller springs to ±0.125 inches or more for larger designs.
Spring Rate
Spring rate tolerances typically fall within about ±10 percent under normal manufacturing conditions.
Working Load
Working loads are also commonly controlled within a ±10 percent tolerance range unless tighter control is specified.
These values provide general guidance. Critical applications may require tighter tolerances, which can often be achieved through additional testing, sorting, or manufacturing controls.
Why Spring Tolerance Analysis Matters
Tolerance analysis ensures that springs function correctly when integrated into larger mechanical systems. Springs often interact with shafts, housings, hinges, or linkages, meaning dimensional variation can directly affect assembly performance.
Key goals of tolerance analysis include:
- Ensuring proper fit within the assembly
- Maintaining consistent load or torque output
- Preventing interference with surrounding components
- Ensuring predictable spring performance over time
Engineers must consider the combined effects of spring tolerances and mating component tolerances. This process is often referred to as tolerance stack-up analysis.
If multiple components vary toward the same extreme limits, the assembly may experience binding, excessive preload, or misalignment.
Factors That Influence Spring Tolerances
Several factors influence how tightly springs can be manufactured.
- Wire Diameter Variation: Spring stiffness is highly sensitive to wire diameter because spring rate is proportional to the fourth power of the wire diameter. Even small variations can produce measurable differences in spring force.
- Material Properties: Mechanical properties such as modulus of elasticity and tensile strength vary slightly between batches of spring wire. These variations contribute to differences in spring rate and load.
- Heat Treatment and Stress Relief: After coiling, springs typically undergo heat treatment to relieve internal stresses. Minor dimensional changes may occur during this process.
- Manufacturing Processes: Spring coiling machines, tooling wear, and forming techniques all influence dimensional accuracy and repeatability.
Understanding these factors helps engineers set realistic expectations for achievable tolerances.
Common Problems Caused by Poor Tolerance Planning
Improper tolerance specifications can create several engineering challenges.
- Overly Tight Tolerances: One of the most common design issues is specifying tolerances that are unnecessarily tight. This can increase manufacturing difficulty, raise production costs, and lengthen lead times. In some cases, the requested tolerances may not be achievable using standard spring manufacturing processes.
- Inconsistent Spring Performance: If tolerance limits are poorly defined, springs may vary significantly in load or torque output. This can lead to inconsistent product behavior or system instability.
- Assembly Interference: Dimensional variation in spring diameter or length may cause interference with surrounding components such as guide rods or housings.
A proper tolerance analysis identifies these risks early in the design process.
Best Practices for Managing Spring Tolerances
Engineers can improve spring performance and manufacturability by following several key design practices.
Use Standard Tolerances When Possible
Industry guidelines provide practical tolerance ranges based on spring size and type. Using these standard tolerances often improves manufacturability and reduces cost.
Specify Critical Dimensions Clearly
Only the dimensions that affect function should be tightly controlled. Over-specifying noncritical dimensions can increase manufacturing complexity without improving performance.
Design for Adjustability
In some applications, adjustable mounting points or preload mechanisms can help compensate for normal spring variation.
Collaborate With Spring Manufacturers
Experienced spring manufacturers can recommend achievable tolerances and identify potential design improvements early in the development process.
Partner With Experts in Spring Design and Manufacturing
Proper spring tolerance analysis plays a vital role in producing reliable springs for demanding applications. By carefully balancing dimensional accuracy, load performance, and manufacturing capability, engineers can design springs that perform consistently while remaining practical to produce.
Wermke Spring has decades of experience designing and manufacturing precision springs for industrial, commercial, and custom mechanical applications. Our engineering team works closely with customers to evaluate tolerance requirements, recommend design improvements, and ensure reliable spring performance.
If you need assistance evaluating spring tolerance specifications or developing a custom spring design, contact Wermke Spring today.
Call (636) 677-5500 or reach out through our website to learn how our team can support your next project.
