Designing a reliable torsion spring requires a clear understanding of how rotational forces interact with spring geometry, material properties, and application requirements. Effective torsion spring design ensures that springs deliver consistent torque, maintain structural integrity over repeated cycles, and perform reliably in demanding mechanical environments.
Torsion springs are widely used in mechanical assemblies where rotational force is required. Common applications include hinges, clothespins, garage doors, counterbalance systems, industrial equipment, and precision mechanical devices. Unlike compression or extension springs that operate under linear loads, torsion springs store and release energy through angular deflection.
Understanding the fundamentals of torsion spring engineering helps designers specify springs that meet performance goals while maximizing fatigue life and reliability.
What Is a Torsion Spring?
A torsion spring is a helical spring that applies torque when it is twisted around its axis. When the legs of the spring rotate relative to each other, the coils experience bending stress and generate a restoring force that attempts to return the spring to its original position.
In most applications, torsion springs are mounted around a shaft or arbor. The spring legs transfer rotational force into surrounding mechanical components.
Proper torsion spring design ensures that the spring operates within safe stress limits while delivering the required torque output for the application.
Learn more about what torsion spring are.
Key Principles of Torsion Spring Design
Designing an efficient torsion spring involves balancing several mechanical variables. These factors directly influence torque capacity, spring life, and overall performance.
Wire Diameter
Wire diameter is one of the most important variables in torsion spring engineering. Increasing the wire diameter significantly increases the spring’s torque capacity and stiffness.
However, thicker wire also increases bending stress within the coils. Designers must carefully select the appropriate diameter to balance strength, deflection capability, and fatigue resistance.
Mean Coil Diameter
The mean coil diameter is the average diameter of the spring coils and is calculated by subtracting the wire diameter from the outside diameter.
Mean coil diameter influences both spring flexibility and manufacturability. Smaller coil diameters create higher internal stresses, while larger diameters produce more flexible springs.
The ratio between coil diameter and wire diameter is often referred to as the spring index, which plays an important role in manufacturability and stress distribution.
Number of Coils
The number of active coils affects both the angular deflection and the torque characteristics of a torsion spring.
Increasing the number of coils allows greater angular deflection but reduces spring stiffness. Fewer coils increase stiffness and torque but reduce allowable rotation.
Selecting the optimal number of coils is a critical step in proper torsion spring design.

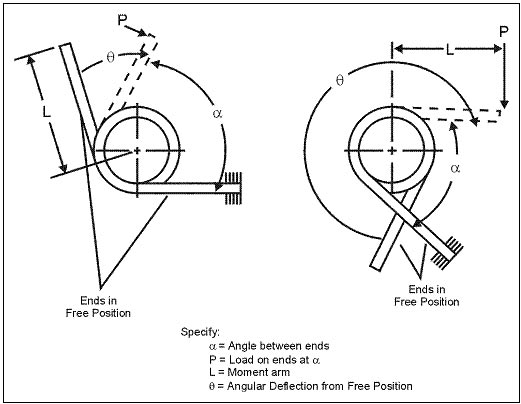

Torque, Angular Deflection, and Spring Rate
In torsion springs, performance is typically defined by torque rather than linear load. Torque is the rotational force generated when the spring legs are deflected.
Torque Output
Torque is determined by several design parameters including wire diameter, coil diameter, material properties, and number of coils.
Engineers must specify the required torque at a given angular deflection to ensure the spring performs properly in its intended application.
Learn more about calculating torsion spring torque.
Angular Deflection
Angular deflection refers to the number of degrees the spring rotates from its free position. The allowable deflection must remain within the material’s elastic range to prevent permanent deformation.
Torsional Spring Rate
The torsional spring rate describes how much torque increases for each degree of angular deflection. This value determines how stiff or flexible the spring will feel in operation.
Understanding these relationships is essential when designing springs for hinges, counterbalances, and other rotational systems.
Material Selection in Torsion Spring Design
Material selection plays a major role in the strength, fatigue resistance, and environmental durability of torsion springs.
Common torsion spring materials include:
- Music wire
- Stainless steel
- Oil tempered wire
- Chrome silicon alloys
Each material offers unique mechanical properties such as tensile strength, corrosion resistance, and temperature tolerance.
Selecting the correct material ensures that torsion springs maintain performance over long service lifetimes.
Learn more about torsion spring materials.
Leg Configuration and Mounting Considerations
Torsion springs typically feature two legs that transmit rotational force into surrounding components. The configuration of these legs must be carefully designed to fit the application.

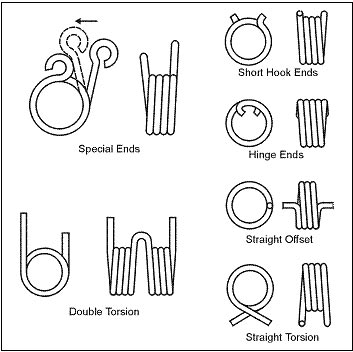

Common leg styles include straight legs, offset legs, and custom formed ends.
Designers must also consider:
- Mounting geometry
- Direction of winding
- Shaft clearance
- Bearing surfaces
Improper leg orientation can cause uneven stress distribution or installation difficulties.

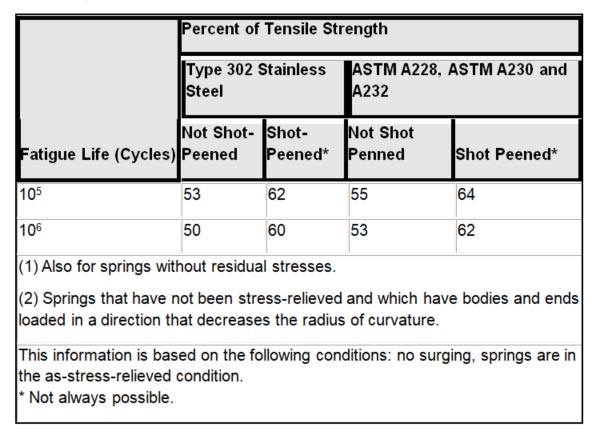

Fatigue Life and Reliability
Many torsion springs operate in applications involving repeated rotational cycles. Over time, cyclic stresses can lead to fatigue failure if springs are not properly designed.
Key factors that influence fatigue life include:
- Operating stress levels
- Surface quality
- Material selection
- Shot peening and finishing processes
Experienced spring manufacturers carefully analyze these factors to ensure long service life.
