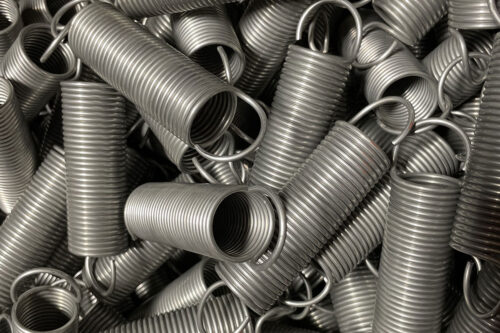

Extension springs are tightly wound, helical springs that operate under tension. Unlike compression springs, which resist being pushed together, extension springs are designed to resist stretching. When the ends of the spring are pulled apart, they exert a return force to bring them back together. These springs store mechanical energy when extended and release it when returning to their original shape. So what are extension springs exactly and how are they used? Read on to learn more.
At Wermke Spring, we manufacture precision extension springs for a broad range of industries and applications. With over 70 years of experience, we deliver dependable spring solutions that meet the demands of high-performance, safety-critical, and heavy-use environments. Contact us to learn more about our custom extension spring manufacturing services or request a quote for your spring manufacturing project.
How Extension Springs Work
Extension springs generate resistance by pulling back against an applied load. Each spring has a specified initial tension, the force that holds the coils tightly closed. As the spring stretches, force increases proportionally to the amount of extension – this relationship is typically linear and governed by Hooke’s Law.
Where:
- F = applied force (lbs or N)
- k = spring rate (lbs/in or N/mm)
- x = amount of extension or deflection (in or mm)
Spring rate (k) represents how much force is needed to extend the spring by a unit of distance. The higher the spring rate, the stiffer the spring.
Key Characteristics:
- Initial tension: The built-in preload that holds coils together
- Hook types: Full hooks, machine loops, side hooks, extended hooks, or custom ends
- Material: Varies based on environment, strength, and fatigue requirements
Types of Extension Springs
Extension springs come in a variety of configurations depending on the needs of the application:
Standard Helical Extension Springs
The most common type, featuring uniform pitch and tightly wound coils with hooks or loops at both ends.
Variable Pitch Extension Springs
Used when a progressive response is needed. The coil spacing varies to change force characteristics along the extension path.
Tapered Extension Springs
Have a changing diameter along the coil length, reducing solid height or changing the force curve.
Custom Hook and Loop Designs
End configurations can be tailored for secure attachment, space savings, or unique load requirements.
Learn more about Types Of Extension Springs.
Materials Used in Extension Spring Manufacturing
When learning what extension springs are, it is important to consider material as well as design. Material selection depends on application conditions like load, temperature, corrosion, and fatigue resistance.
Common Materials:
- Music Wire – High tensile strength; ideal for static applications
- Stainless Steel (302, 316, 17-7) – Corrosion-resistant; ideal for outdoor, food-grade, or medical use
- Chrome Silicon – Excellent fatigue strength and temperature resistance
- Phosphor Bronze & Beryllium Copper – Conductive; used in electrical or corrosive environments
- Oil Tempered Wire – Durable and cost-effective for general industrial use
Extension Spring Applications
Extension springs are used in a wide array of mechanical systems where controlled pulling or return motion is required. Their compact nature and predictable response make them useful across industries.
Common Uses Include:
- Automotive – Brake systems, throttle controls, trunk mechanisms
- Aerospace – Retraction devices, latching mechanisms
- Medical Devices – Diagnostic tools, retractable cords
- Industrial Machinery – Safety interlocks, lever mechanisms
- Consumer Products – Garage doors, appliances, tools
- Agriculture – Equipment arms, tensioners
Design Considerations
When manufacturing an extension spring, engineers must consider several design factors:
- Body Diameter – Outer and inner diameter affect fit and force
- Wire Diameter – Influences spring strength and fatigue life
- Free Length – The overall spring length at rest
- Extended Length – Max length the spring can safely reach
- Initial Tension – Sets starting load before extension
- Hook Design – Impacts load transfer, fit, and durability
Wermke Spring offers full engineering support to help calculate and refine these values for optimal performance.
Frequently Asked Questions About Extension Springs
What is initial tension in an extension spring?
Initial tension is the force holding the coils tightly closed when the spring is at rest. This preload must be overcome before any coil movement occurs, providing stability and snap-back.
Can extension springs be customized?
Yes. We manufacture extension springs to meet exact performance requirements, including body size, coil count, material, and hook configuration.
What’s the difference between open-loop and machine-loop hooks?
Open-loop hooks are easier to manufacture but have lower strength. Machine-loop hooks are stronger and more durable, ideal for demanding applications.
Are stainless steel extension springs magnetic?
302 and 316 stainless steel are non-magnetic in the annealed state but may become slightly magnetic after cold working.
