Designing a reliable compression spring requires more than simply selecting a wire diameter and coil count. Engineers must understand how compression spring load, deflection, spring rate, and stress interact to ensure proper performance. Accurate calculations allow a spring to deliver the required force without overstressing the material or shortening fatigue life.
At Wermke Spring, our engineers work with customers every day to design compression springs that meet exact load requirements while maintaining durability and safety. The following overview explains how compression spring load is calculated and what design factors influence performance.
What Is Compression Spring Load?
Compression spring load refers to the amount of force required to compress a spring to a specific length or deflection. As a compression spring is squeezed, it resists the applied force and stores mechanical energy. When the force is removed, the spring returns toward its original length.
The load generated by a compression spring depends primarily on the spring rate and the amount of deflection.
Basic Relationship Between Load and Deflection
The fundamental equation used in compression spring design is:
Load (F) = Spring Rate (k) × Deflection (Δx)
Where:
- F = Load or force applied to the spring
- k = Spring rate (force per unit of deflection)
- Δx = Deflection from free length
For example, if a spring has a spring rate of 10 lb/in and is compressed 2 inches, the compression spring load is:
F = 10 × 2 = 20 pounds
This linear relationship applies to most compression springs operating within their elastic range.
Key Parameters That Affect Compression Spring Load
Several design variables determine the spring rate and resulting compression spring load.
Wire Diameter
Wire diameter has a major influence on spring stiffness. Because the rate equation includes the wire diameter raised to the fourth power, even small increases dramatically increase load capacity.
Thicker wire produces a much stronger spring.
Mean Coil Diameter
The mean diameter is the average diameter of the spring coil and equals:
Mean Diameter = Outside Diameter − Wire Diameter
Larger coil diameters reduce spring stiffness, while smaller diameters increase stiffness and compression spring load.
Number of Active Coils
The number of coils that actually deflect under load affects how easily the spring compresses.
More active coils produce a lower spring rate and require less force to compress.
Fewer active coils increase stiffness and load capacity.
Modulus of Rigidity
Material properties also affect spring performance. The modulus of rigidity (G) describes how resistant a material is to twisting deformation.
Common values include:
- Music wire: ~11.5 million psi
- Stainless steel: ~10.0 million psi
- Chrome silicon: ~11.5 million psi
Compression spring material selection therefore directly influences compression spring load and spring rate.
Calculating Spring Rate for Compression Springs
The spring rate equation for a compression spring is:
k = (G × d⁴) / (8 × D³ × N)
Where:
- k = spring rate
- G = modulus of rigidity
- d = wire diameter
- D = mean coil diameter
- N = number of active coils
This equation allows engineers to calculate the stiffness of the spring before determining the compression spring load at a specific deflection.
Determining Maximum Safe Load
While calculating compression spring load is essential, it is equally important to ensure the spring operates safely within its stress limits.
Maximum load must account for:
- Shear stress in the wire
- Material fatigue limits
- Expected number of cycles
- Operating temperature
- Safety factors
A common design guideline is to keep working stresses below 40–50% of the material’s tensile strength for long fatigue life applications.
Exceeding these limits can cause permanent set or spring failure.
Understanding Solid Height and Maximum Deflection
A critical factor in compression spring design is solid height, which is the length of the spring when all coils are touching.
Once a spring reaches solid height, no further deflection is possible. Additional force can cause severe stress, coil damage, or permanent deformation.
Designers typically maintain a clearance margin between maximum operating deflection and solid height to prevent damage during use.
Additional Factors Affecting Compression Spring Performance
Buckling Risk
Long compression springs can buckle under load if unsupported. Engineers evaluate the slenderness ratio (free length divided by mean diameter) to determine whether a spring requires guidance inside a tube or on a rod.

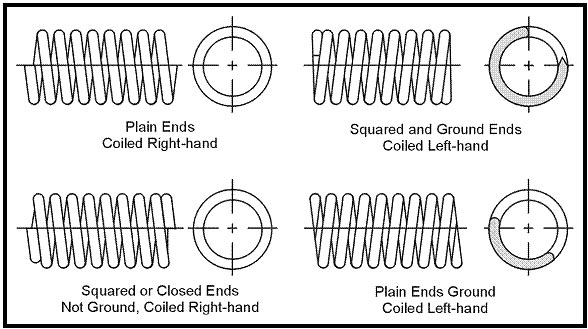

End Conditions
Compression springs may have:
- Plain ends
- Closed ends
- Closed and ground ends
Ground ends improve load distribution and stability during compression.
Learn more about compression spring design considerations.
Surface Treatments
Shot peening, plating, and stress relief heat treatments can significantly improve fatigue resistance and long-term reliability.
Learn more about compression spring coatings and finishes.
Why Accurate Compression Spring Load Calculations Matter
Correctly calculating compression spring load ensures that the spring:
- Delivers the required force
- Fits within the available space
- Maintains long fatigue life
- Avoids permanent deformation or failure
Even small changes in wire diameter, coil count, or material properties can significantly affect spring behavior. That is why experienced engineering support is essential when designing springs for critical applications.
Work With Experienced Spring Engineers
At Wermke Spring, we specialize in designing and manufacturing precision compression springs for demanding applications across many industries. Our engineering team can assist with compression spring load calculations, material selection, fatigue analysis, and custom spring design.
Whether you need a prototype, replacement spring, or full production run, we are here to help ensure your spring performs exactly as required.
