Understanding compression spring terminology is essential for engineers, designers, and purchasing professionals who work with spring components. Clear knowledge of technical spring terms helps ensure that specifications are accurate, communication with manufacturers is precise, and the final spring performs as expected in the application.
Compression springs are widely used in mechanical systems to store energy, absorb shock, and apply force between contacting surfaces. The performance of these springs depends on several geometric, mechanical, and material parameters. This guide explains the most important compression spring terms and definitions used in spring design and manufacturing.
For additional information about spring materials and custom spring manufacturing capabilities , contact our team today.
Key Compression Spring Terminology
Spring Rate
The spring rate describes the stiffness of a compression spring. It represents the amount of force required to compress the spring by a specific distance.
Spring rate is typically expressed as pounds per inch (lb/in) or newtons per millimeter (N/mm). A higher spring rate means the spring is stiffer and requires more force to compress.
Spring rate is calculated using several design variables including wire diameter, coil diameter, number of active coils, and the material’s modulus of rigidity.
Learn more about technical spring rate).
Free Length
Free length is the overall length of a compression spring when it is not under any load. This dimension is important because it determines the maximum available deflection before the spring reaches its solid height.
During installation, springs are typically compressed from their free length to provide the desired load.
Solid Height
Solid height is the length of a compression spring when it is fully compressed and all coils are touching. At this point, no additional deflection is possible.
Operating a spring at or near solid height can lead to excessive stress, permanent deformation, or failure. Proper compression spring design ensures that the maximum operating deflection remains safely above the solid height.
Deflection
Deflection refers to the change in length of a compression spring when a load is applied. Deflection is calculated as the difference between the free length and the compressed length.
For example:
Deflection = Free Length − Compressed Length
Deflection directly determines the load generated by the spring based on its spring rate.

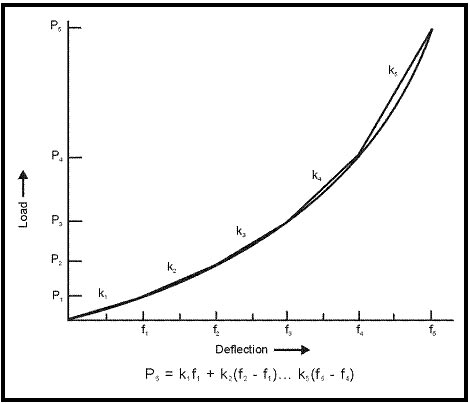

Load
Load is the force applied to compress a spring. The relationship between load and deflection is typically linear within the elastic range of the spring material.
Load can be calculated using the equation:
Load = Spring Rate × Deflection
Understanding compression spring load is critical when designing mechanical systems that rely on precise force control.
Learn more about compression spring load calculation.
Geometric Terms Used in Compression Spring Design
Wire Diameter
Wire diameter refers to the thickness of the wire used to form the spring. This dimension has a significant influence on spring stiffness because it affects the spring rate to the fourth power in the rate equation.
Small increases in wire diameter dramatically increase spring strength and load capacity.
Mean Diameter
The mean diameter is the average diameter of the spring coil. It is calculated using the formula:
Mean Diameter = Outside Diameter − Wire Diameter
This value is used in most spring engineering equations.
Spring Index
The spring index is the ratio of the mean diameter to the wire diameter.
Spring Index = Mean Diameter / Wire Diameter

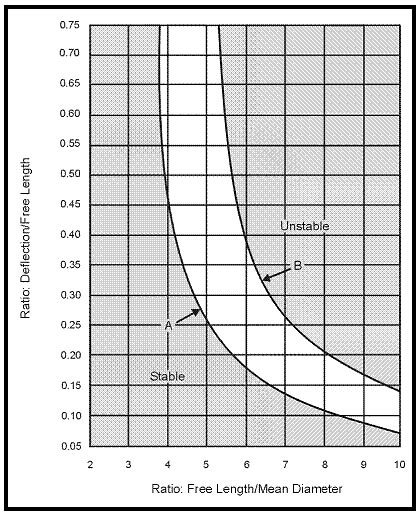

Typical spring index values range from 4 to 12. Lower values can create manufacturing challenges, while higher values may reduce spring stability.
Active Coils
Active coils are the coils in a compression spring that actually deflect under load. End coils that are squared or ground typically do not contribute to deflection and are considered inactive.
The number of active coils directly affects spring rate.
Performance and Mechanical Properties
Modulus of Rigidity
The modulus of rigidity, also called shear modulus, describes a material’s resistance to torsional deformation. This property is an important factor in determining spring stiffness.
Common spring materials such as music wire, stainless steel, and chrome silicon each have different modulus values.
Learn more about compression spring materials and their properties.
Stress
Stress refers to the internal force within the spring material caused by an applied load. Excessive stress can lead to permanent deformation or fatigue failure.
Proper spring design ensures that operating stress remains within the safe limits of the material.
Fatigue Life
Fatigue life describes how many cycles a spring can complete before failure occurs. Springs used in dynamic applications may experience millions of compression cycles.
Surface treatments such as shot peening and proper material selection can significantly improve fatigue performance.
Why Understanding Compression Spring Terminology Matters
Using correct compression spring terminology helps engineers and manufacturers communicate more effectively when specifying springs for complex mechanical systems. Accurate terminology also ensures that design calculations, tolerances, and testing procedures align with industry standards.
At Wermke Spring, our team works closely with engineers and product designers to clarify specifications, recommend materials, and optimize spring performance for each application. Our goal is to deliver reliable springs that meet precise mechanical requirements.
