Compression springs are the most widely used spring type in mechanical systems. While most people are familiar with the standard cylindrical coil, the reality is that compression springs come in a variety of forms and styles, each designed to suit specific load, space, and performance requirements. At Wermke Spring, we manufacture all types of compression springs, engineered to meet the demands of diverse applications across industries such as automotive, aerospace, medical, energy, and industrial equipment.
This page explores the major types of compression springs, including their shapes, functions, and benefits, along with technical considerations and frequently asked questions to help engineers, designers, and buyers make informed decisions. To learn more about our compression spring manufacturing capabilities or request a quote, contact our team today.
Understanding Compression Spring Configurations
At their core, all compression springs are open-coil helical springs designed to resist compressive forces. However, variations in coil shape, pitch, diameter, and end treatment can significantly influence how the spring behaves in application.
Here are the most common and specialized types of compression springs:
Cylindrical Compression Springs
The most traditional and widely recognized form. These springs maintain a consistent diameter throughout the length of the coil.
Key Characteristics:
- Constant pitch and wire diameter
- Linear force-deflection response
- Ideal for applications where space and deflection are predictable
Common Uses:
- Automotive suspensions
- Valves and pumps
- Industrial actuators
Conical Compression Springs
Conical springs have a tapered design with a larger diameter at one end, gradually decreasing toward the other.
Advantages:
- Reduced solid height as coils nest within each other
- Greater lateral stability
- Resistance to buckling during compression
Best Applications:
- Battery contacts
- Electrical connectors
- Limited-space environments
Barrel and Hourglass Compression Springs
These springs feature non-linear coil profiles. Barrel springs are widest in the middle, while hourglass springs taper toward the center.
Benefits:
- Improved load distribution
- Control over lateral movement
- Customizable non-linear force curves
Applications:
- High-precision mechanical assemblies
- Aerospace mechanisms
- Vibration-isolation systems
Nested Compression Springs
Nested springs involve placing one or more smaller springs inside a larger one, combining their forces while maintaining a compact footprint.
Key Benefits:
- Higher load capacity in the same axial space
- Damping effects due to inter-coil friction
- Used when space constraints exist but high force is needed
Typical Uses:
- Heavy machinery
- Shock absorbers
- Industrial control equipment
Equation for Combined Spring Rate (k_total): If springs are nested and operate in parallel:
Where k_n is the spring rate of each individual spring.
Reduced-End Compression Springs
These springs are manufactured with ends that taper or close down to a smaller diameter. This design helps with seating the spring more securely in housing or mating components.
Advantages:
- Improved alignment during compression
- Reduced lateral deflection
- Enhanced fit in stepped bores or precision assemblies
Common Applications:
- Hydraulic valves
- Instrumentation
- Automotive connectors
Variable Pitch Compression Springs
Springs with varying coil pitch along their length provide progressive resistance – lighter at first, then stiffer as the load increases.
Benefits:
- Smooth force transition
- Better control in applications requiring variable force
- Dampens vibration and shock loading
Used In:
- Vehicle suspensions
- Actuated systems
- Performance equipment
Compression Spring Ends
The type of end configuration impacts how the spring interfaces with other components. Options include:
- Open or Closed Ends:
- Open ends (Plain Ends)– Ending the coil without bringing the end of the wire back to the previous coil. Open end springs are usually application-dependent.
- Closed ends (Squared Ends) – Reducing the space between the last coil and the previous coil so that the end of the last coil touches the previous coil. This is done so the spring can sit flat. This is the more common end configuration.
- Ground or Unground:
- Ground ends: Require a secondary operation and increase costs. Ground ends allow springs sit more flat and makes the free length and spring rate more precise.
- Unground ends: suitable for most commercial applications, large production runs and small wire sizes.

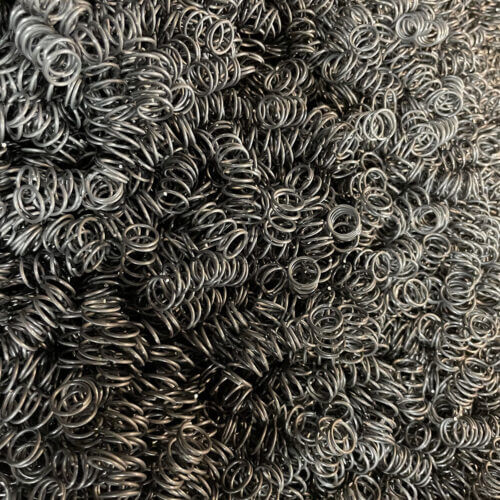

Frequently Asked Questions About Types of Compression Springs
What type of compression spring is best for high load applications?
Nested compression springs or springs made from high-strength materials like Chrome Silicon or Inconel are best for high-load environments. Wermke Spring can assist in determining the best solution based on your force requirements and space limitations.
How do I select the right compression spring shape?
Consider the available space, direction of load, risk of buckling, and desired force curve. For example, conical springs offer better stability, while barrel springs distribute force more evenly.
Can you manufacture springs with progressive force characteristics?
Yes. We produce variable pitch compression springs that offer non-linear force-deflection behavior ideal for impact resistance or ergonomic response.
What are the benefits of tapered or reduced ends?
Tapered or reduced ends help the spring seat more precisely in tight-fitting housings or components with step transitions, reducing the risk of misalignment.
Engineering and Quality You Can Trust
Every compression spring we manufacture is built to exacting standards using advanced machinery, skilled labor, and rigorous quality control. We understand that in demanding applications, the wrong spring can lead to equipment failure, increased downtime, or safety risks.
That’s why Wermke Spring offers:
- Expert material selection
- Tight-tolerance manufacturing
- Design consultation and prototyping
- Fast lead times and responsive support
Whether you need a single custom spring or millions of high-performance parts, we have the knowledge and capabilities to support your application from concept to completion.
